Outboard motor 2 Stroke

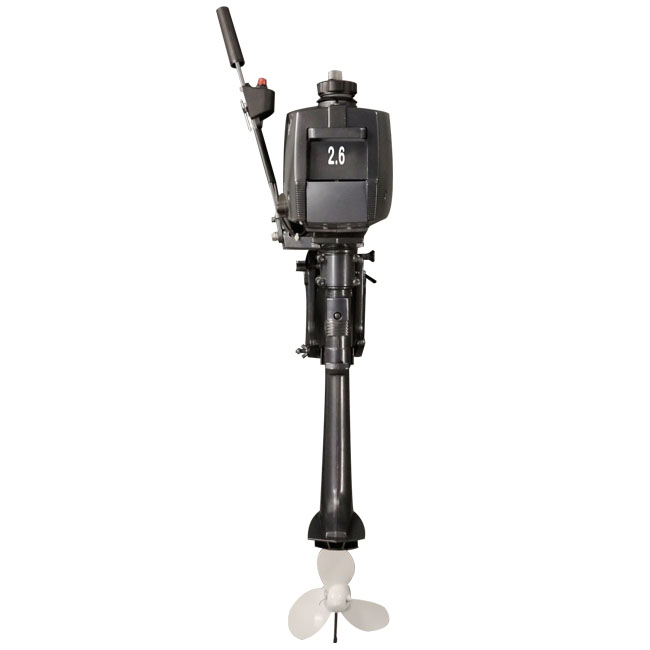

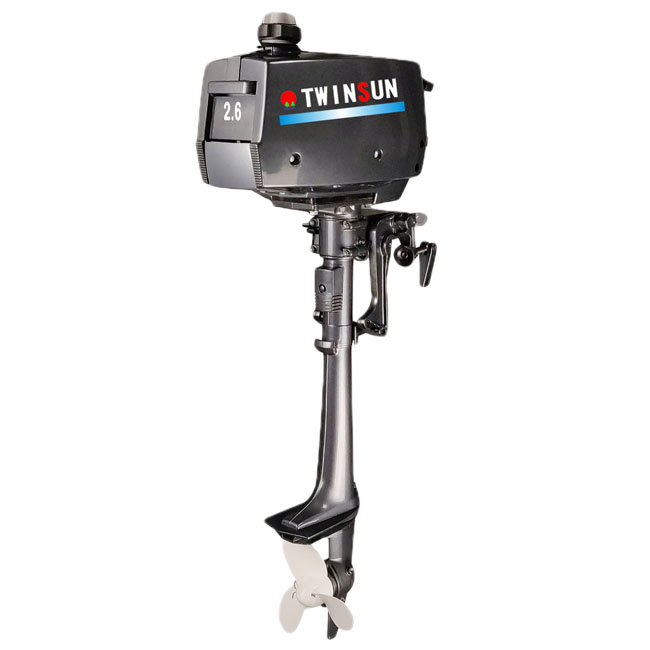

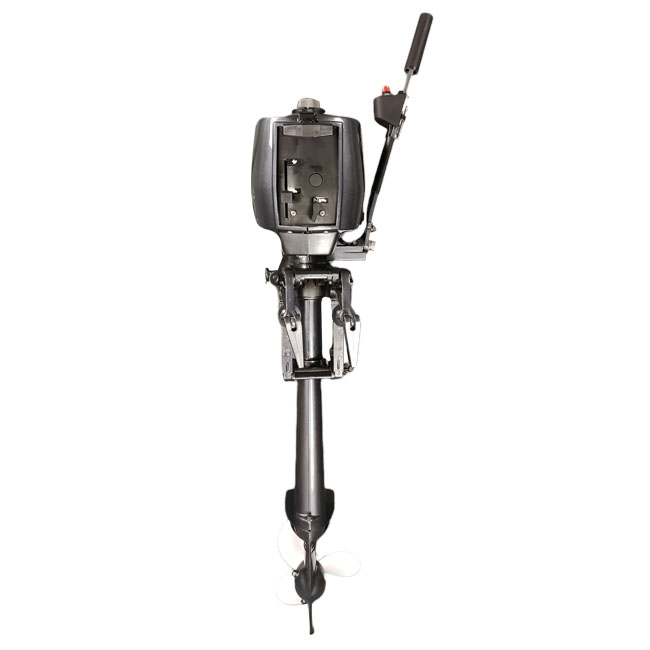

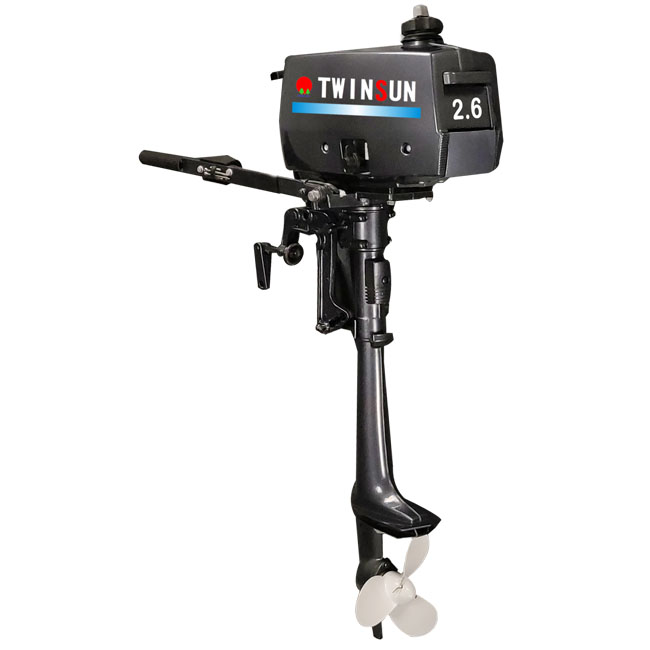

2.6HP outboard engine 2stroke

Model: T2.6BMS (2.6hp 2 stroke)

Overall length	mm(in.)	550(21.6)
Overall width	mm(in.)	220(8.6)
Overall heigth	mm(in.)	920(36.2)
Transom heigh	mm(in.)	417(16.4)
Weight	kg	9.9
Full throttle operating range	r/min	4000-5500
Maximum output:kw(HP)@r/min		1.75(2.6)@5000
Idling speed (in neutral)	r/min	1100-1200
Engine type		2-stroke
Cylinders		1
Displacement	cm³	51
Bore x stroke	mm(in.)	40x34(1.57x1.34)
Ignition system		TCI
Control system		Tiller
Starting system		Manual
Gear positions		/
Gear ratio		2.08(27/13)
Trim and tilt system		Nanual tilt
Integral fuel tank capicity	L	1.1
Separate fuel tank capicity	L	\
Maximum fuel waste	L/h	0.7
Engine oilcapacity/withoutoilfilter	L	Fuel:oil ratio:50:1
Gear oil capacity	ML	45
Propeller options*	in	3x7 1/4"x5"
