Outboard motor 4 stroke

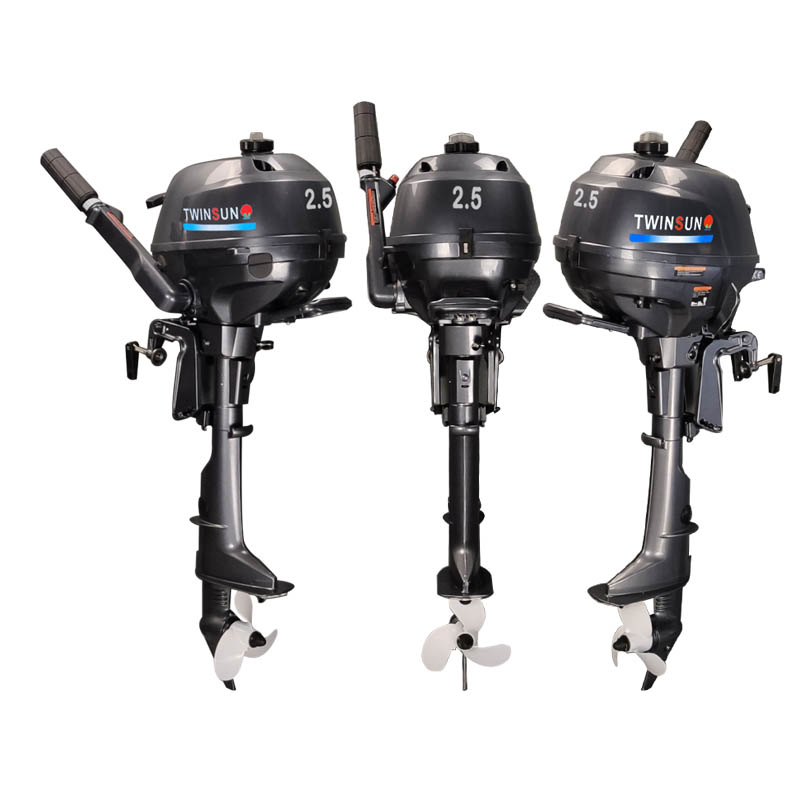

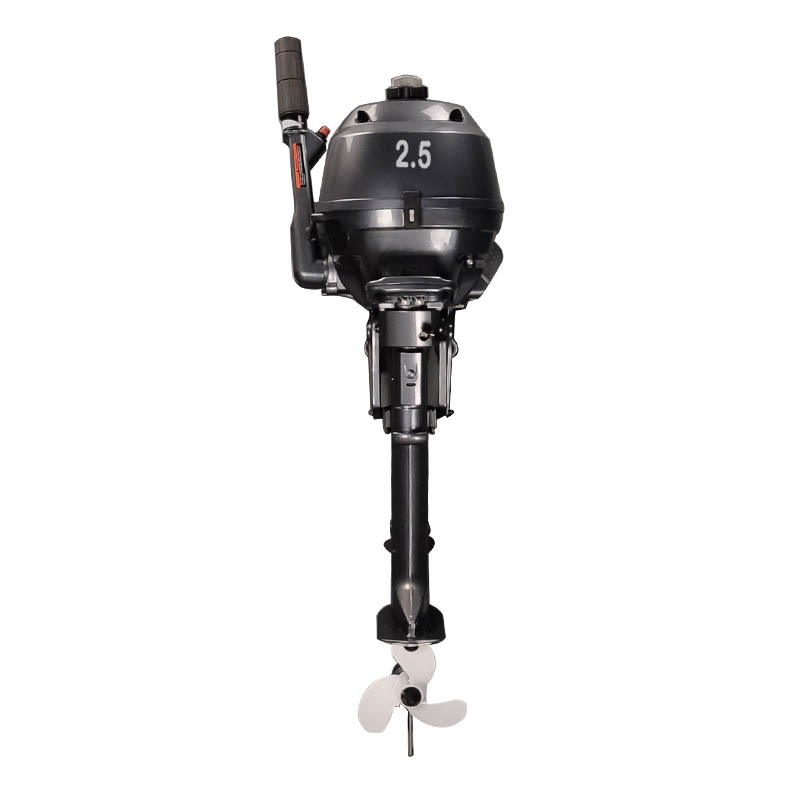

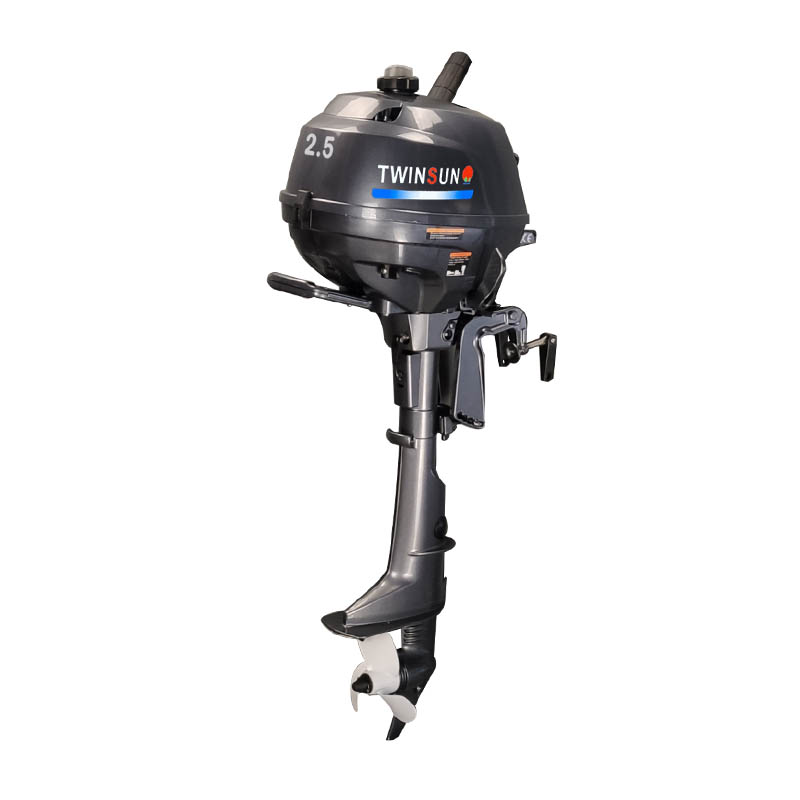

2.5HP outboard engine 4stroke

Model: F2.5BMS (2.5hp 4 stroke)
Overall length	mm(in.)	623(25.4)
Overall width	mm(in.)	345(13.6)
Overall heigth	mm(in.)	1021(40.2)
Transom heigh	mm(in.)	432(17.0)
Weight	kg	17.5
Full throttle operating range	r/min	5250-5750
Maximum output:kw(HP)@r/min		1.8(2.5)@5500
Idling speed (in neutral)	r/min	1250-1350
Engine type		OHV
Cylinders		1
Displacement	cm³	72
Bore x stroke	mm(in.)	54x31.5 (2.13x1.24)
Ignition system		TCI
Control system		Tiller
Starting system		Manual
Gear positions		Forward-neutral
Gear ratio		2.08(27/13)
Trim and tilt system		Nanual tilt
Integral fuel tank capicity	L	1
Separate fuel tank capicity	L	\
Maximum fuel waste	L/h	1.1
Engine oilcapacity/withoutoilfilter	L	0.35
Gear oil capacity	ML	75
Propeller options*	in	3x7 1/4"x6"
